Roller quick change system

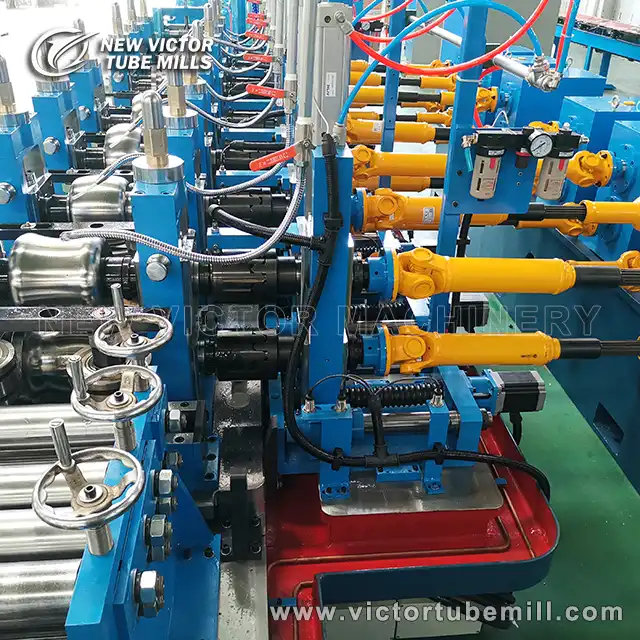

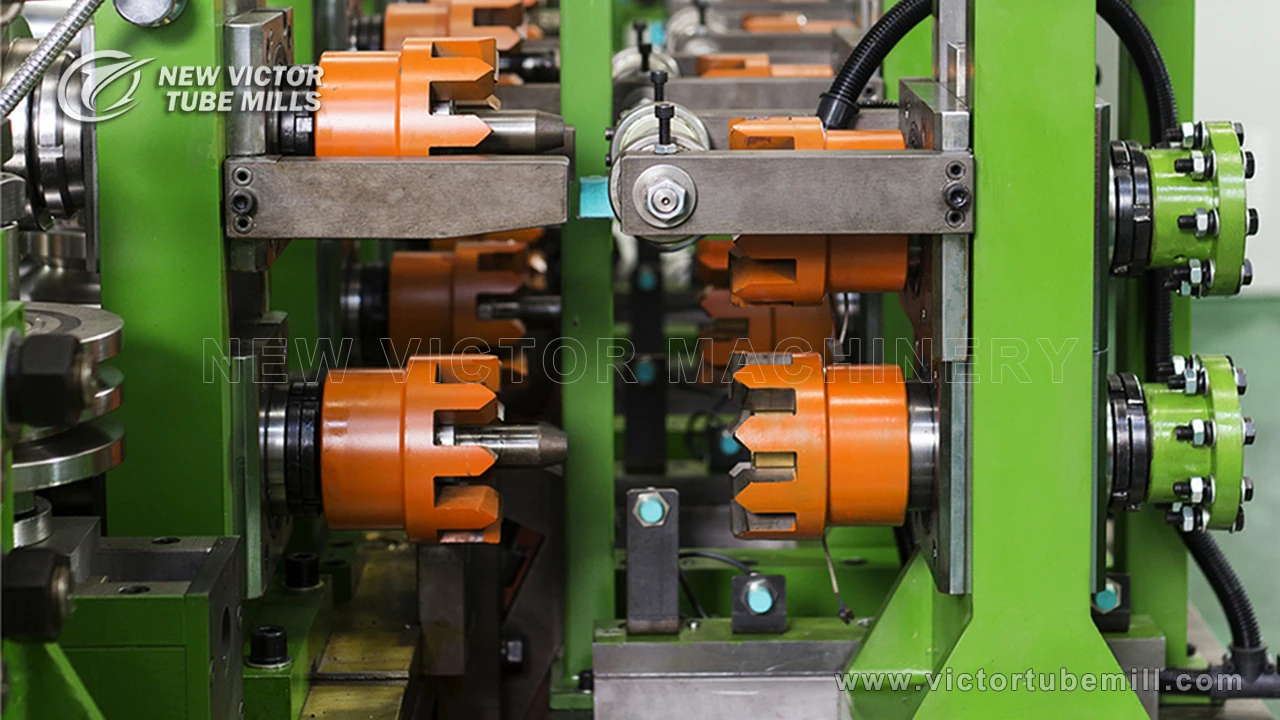

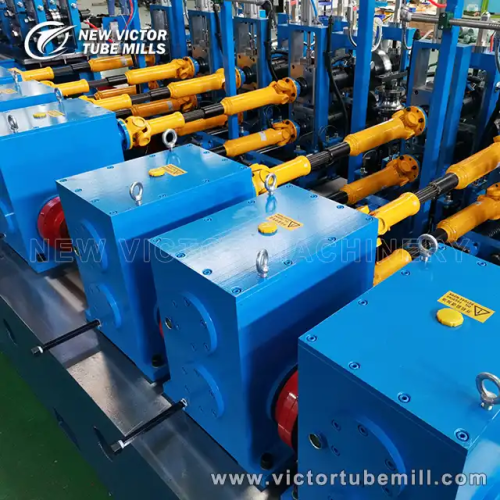

When we need to change the new size rollers, "one-key to start" roll change "quick release" automatic program, the middle bracket with universal coupling drive system in the rear side of mill which will be retreated by the motor or hydraulic cylinder, then universal coupling drive system is quickly releasing from the horizontal shaft.
For small and medium-sized mill machine, after the middle bracket retreated, the positioning and fastening device of the online platform with horizontal and vertical roller stands can be quickly released, so that the whole platform with the roller stands can be lifted off . At the same time, another set of platform which has been replaced off-line with the new rollers can be installed on the corresponding position of the mill table. located & locked the new platform by the fastening device, "one-key to start" again host roll change "quick link" automatic program, the upper roller block of middle bracket drape off by air cylinder, at the same time the rear motor or oil cylinder drives the middle bracket with universal coupling drive system to find the position quickly and link automatically with the upper and lower shaft of flat rollers one by one.
For big-sized mill machine，the top side of the horizontal stand also with quickly side-spin open & cover type crown, the horizontalshaft and roller and slide block can be quickly removed from the upper side.

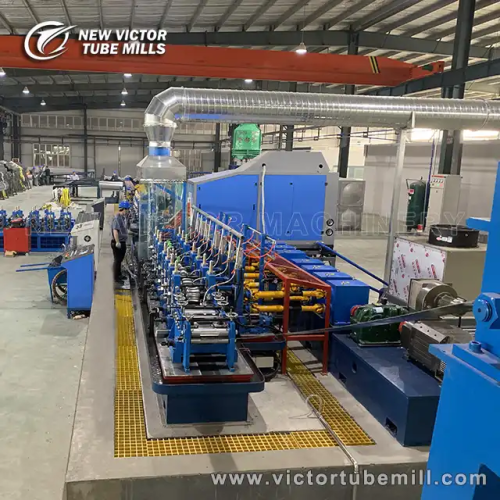

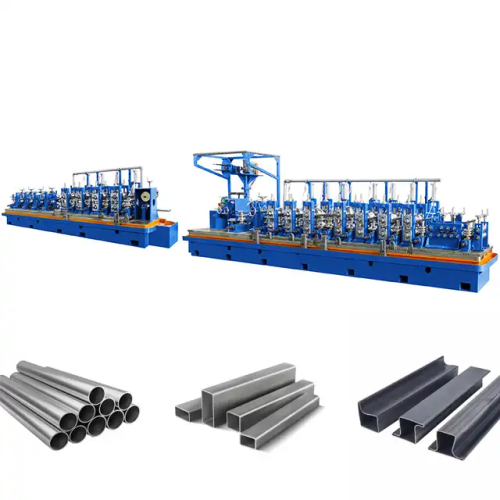

Roller Quick Change Type Tube Mill Machine

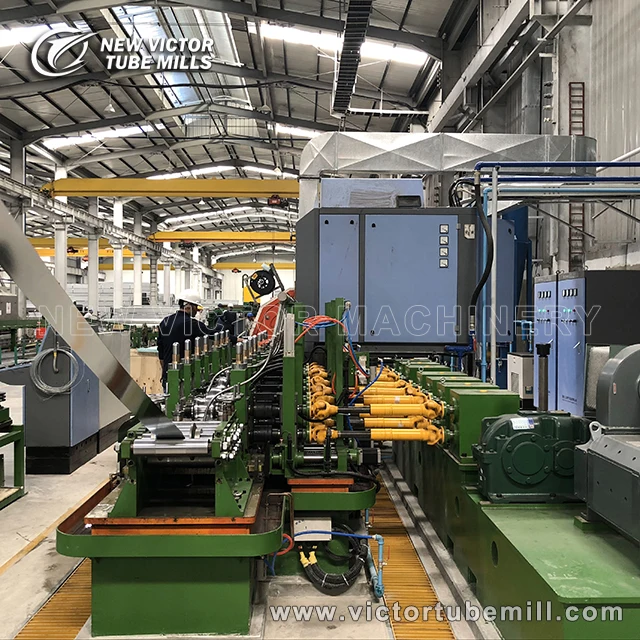

Roller Quick Change Type Pipe Mill Machine

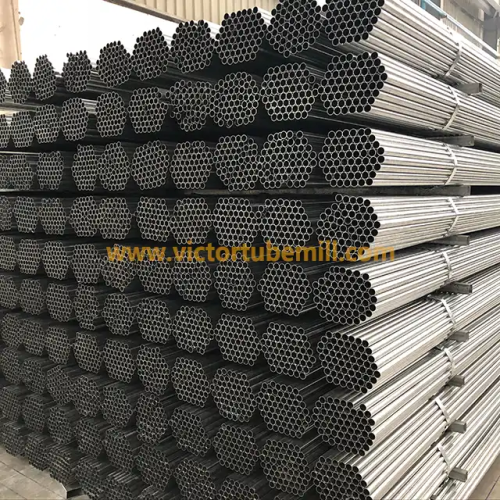

with this system, you can change the roller in 10 minutes and resume production in 20 minutes. one machine can easily produce pipes pf many sizes.


JIANGSU NEW VICTOR INDUSTRIAL CO.,LTD is a manufacturer of welded pipe production lines for more than 30 years. we can supply the complete tube mill line. and we also have the experience in turnkey projects.
