To reprocess the metal tubes, NEW VICTOR has developed the laser cutting machine, which can drilling, engraving and cutting in one machine. And this machine with high precision and smooth cuts
Characteristics
Pipe Material
—
Metal
Applicable Industries
—
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Warranty of core components
—
3 years
Type
—
Fiber Laser
Core Components
—
Motor, Bearing, Gear, Gearbox
Place of Origin
—
China
Laser cutting machine

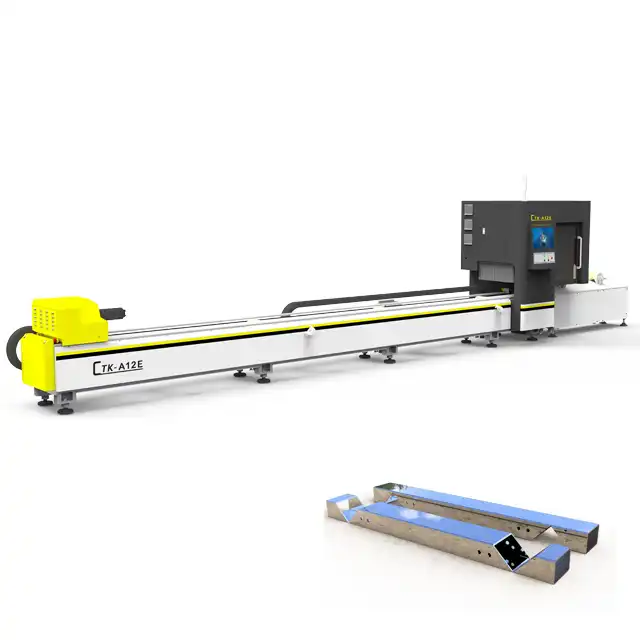

Automatic Fiber Laser Steel Pipe Cutting Machine Metal Engraving Laser Machine
To reprocess the metal tubes, NEW VICTOR has developed the NV series laser cutting machine, which can drilling, engraving and cutting in one machine. and this machine with high precision and smooth cuts.
To reprocess the metal tubes, NEW VICTOR has developed the NV series laser cutting machine, which can drilling, engraving and cutting in one machine. and this machine with high precision and smooth cuts.
Machine Features:
High-speed machining, high machining accuracy
Using high rigidity and thickened bed, with bus tube cutting system and bus motor, the processing speed is faster and the accuracy is higher, helping customers reduce costs and increase efficiency
Double chuck straddle cutting, short tail
The cutting head spans from the front of the front chuck to the back, cutting the last workpiece, the tail material is ≥40mm, which can save more material costs

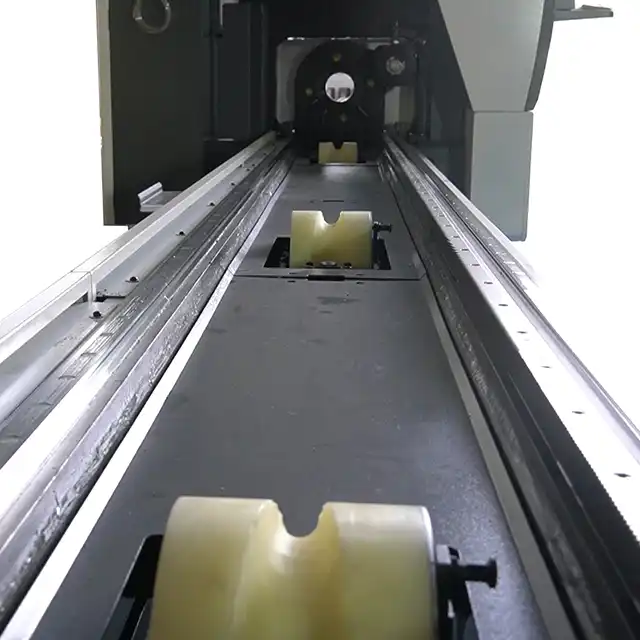

Fast feeding and changing speed
High rigidity design of material rack, stable and fast feeding, cycle time is about 10 seconds Small footprint, can save 20% area

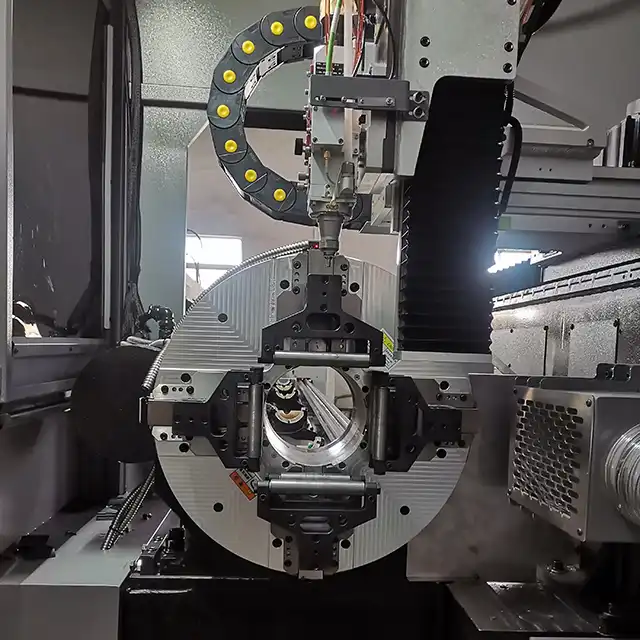

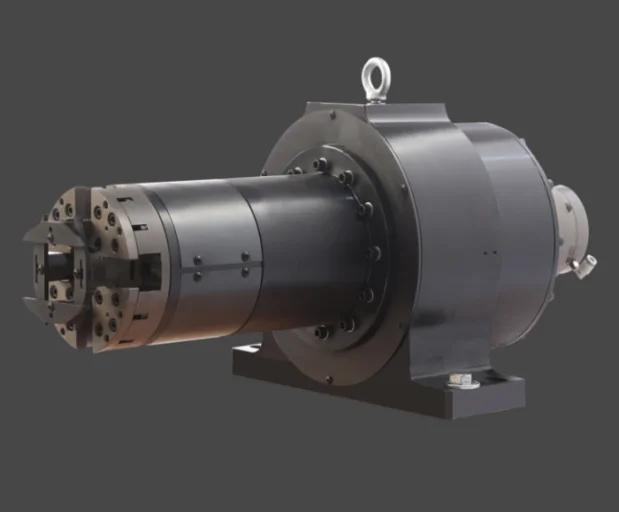

Pneumatic chuck
1.Full stroke pneumatic chuck, automatic and precise centering, fast automatic processing.
2.Convenient application: the pitch circle of the gear is beating, the backlash of the gear meshing is adjusted in place, and the whole machine is easy to install.
3.Small inertia: high-speed processing can be achieved, which can meet the fast cutting of small pipe fittings.
4.Strong stability: The integral built-in drive structure provides transmission accuracy and stability.
5.The gear has built-in dust-proof to avoid the entry of cutting dust, good dust-proof, high grinding precision and low noise.
6.The rear card can be equipped with jaws or tooling to clamp special-shaped tubes.

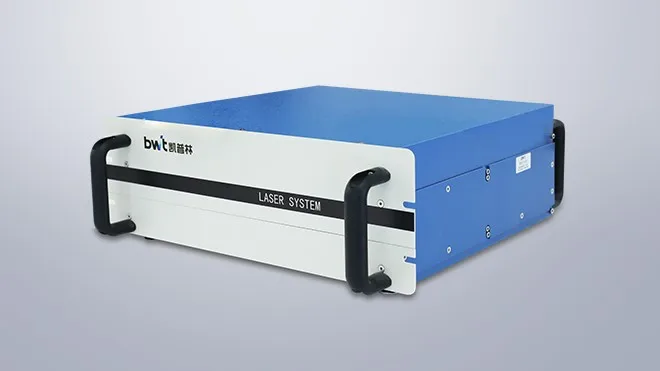

Fiber Laser Generator
1.Fiber laser generator, using imported chips, with higher photoelectric conversion efficiency, lower power consumption
2.Deep research and development of core components: pump source, with 19 years of industry experience
3.High stability, low light decay, long service life
4.Its predecessor is the core supplier of most domestic laser manufacturers

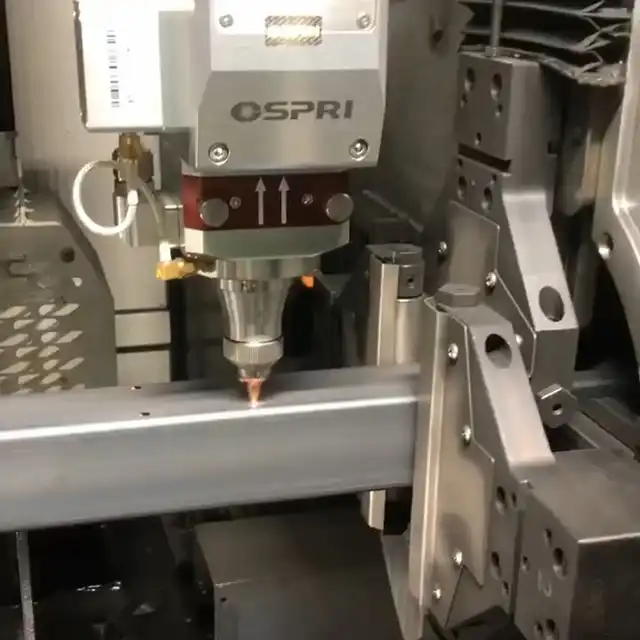

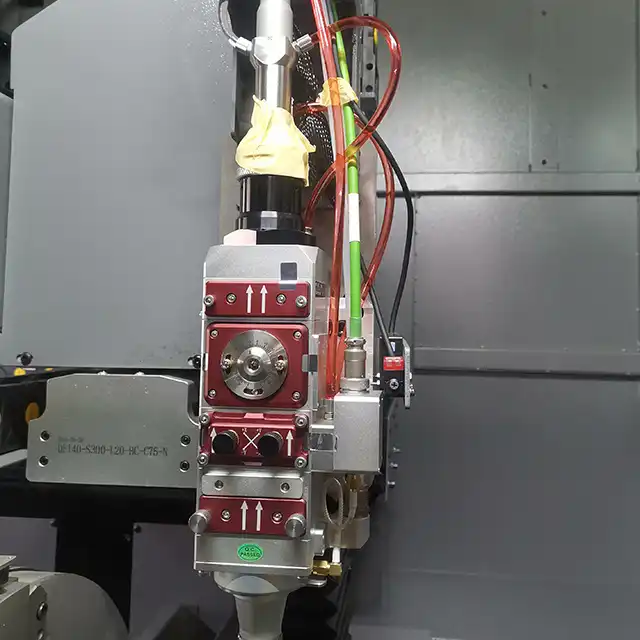

OSPRI Laser Head
1.Cutting more sensitive: the highest support 4000W power laser, sensitive sensor. Optimized optical design with digital height sensor.
2.Cutting more durable: three pieces of protection mirror closely dust-free, more durable.
3.More efficient cutting: Dual water cooling design allows the cutting head to work continuously and steadily at high power for a long time

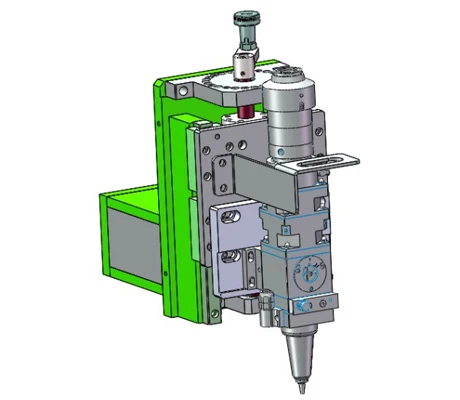

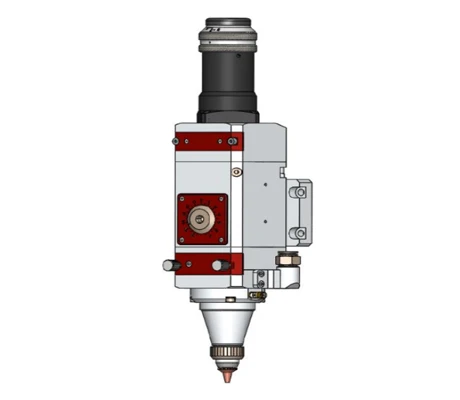

Laser head structure
1. The Z axis refers to the direction in which the laser head moves up and down
2. Structural composition: 1. Servo motor; 2. Guide rail slider; 3. Mounting seat; 4. Laser head, etc.
3. Structure introduction: It can adapt to different specifications of pipes by adjusting the up and down movement of the laser head.
4.Structural advantages: the mechanism is simple, stable and easy to operate.
Characteristics
|
Pipe Material
|
Metal |
|
Applicable Industries
|
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
|
Warranty of core components
|
3 years |
|
Type
|
Fiber Laser |
|
Core Components
|
Motor, Bearing, Gear, Gearbox |
|
Place of Origin
|
China |
|
Power
|
80 r/min |
|
Weight
|
4800 KG |
|
Warranty
|
3 years |
|
Condition
|
New |
|
Voltage
|
380V/50HZ or Customized |
|
Dimension
|
8950x2200x2555 mm |
|
Thickness
|
0-20 mm |
|
Model
|
Laser cutting machine |
