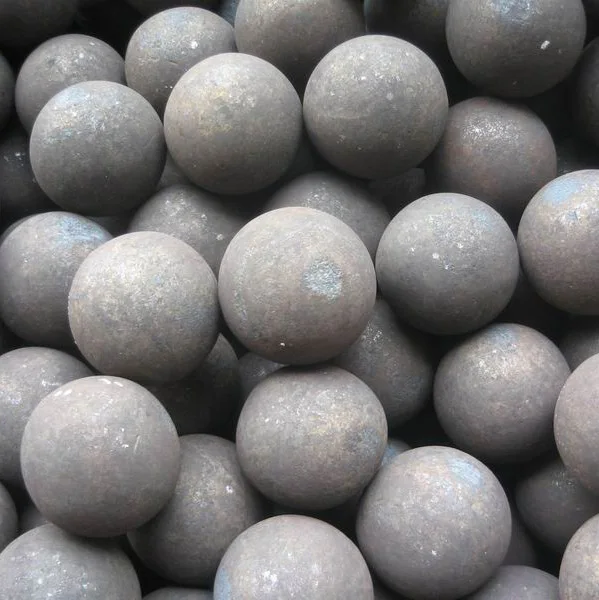

This machine used to make grinding steel ball, Steel balls have precision dimension, good roundness, high hardness and good mechanical properties and high impact toughness, strong crushing ability etc characteristics
Characteristics
Pipe Material
—
iron
Applicable Industries
—
steel ball making machine
Showroom Location
—
Egypt, Turkey, United States
Marketing Type
—
New Product 2020
Warranty of core components
—
1 Year
Core Components
—
PLC, Motor

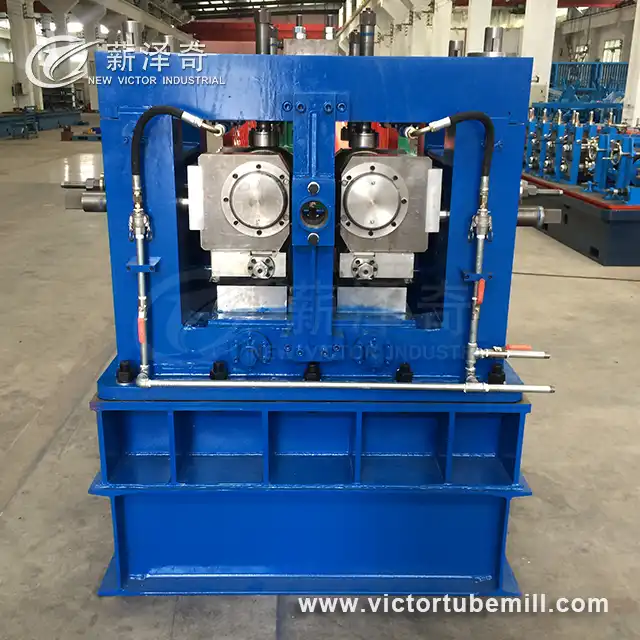

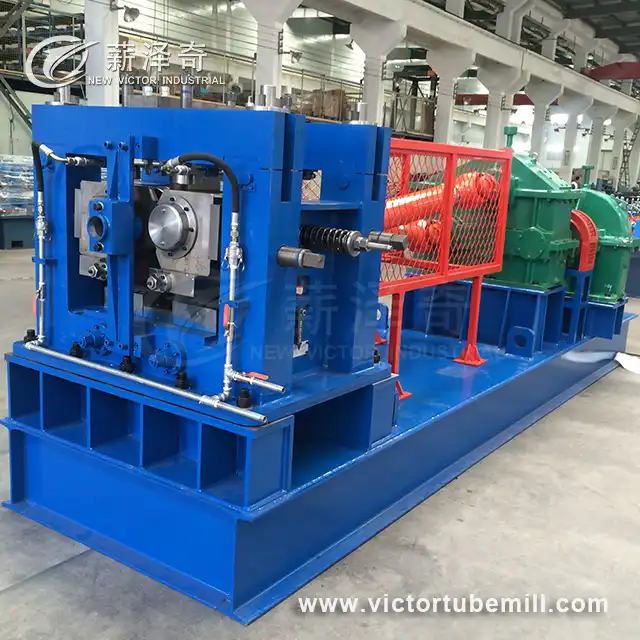

Steel ball rolling mill machine

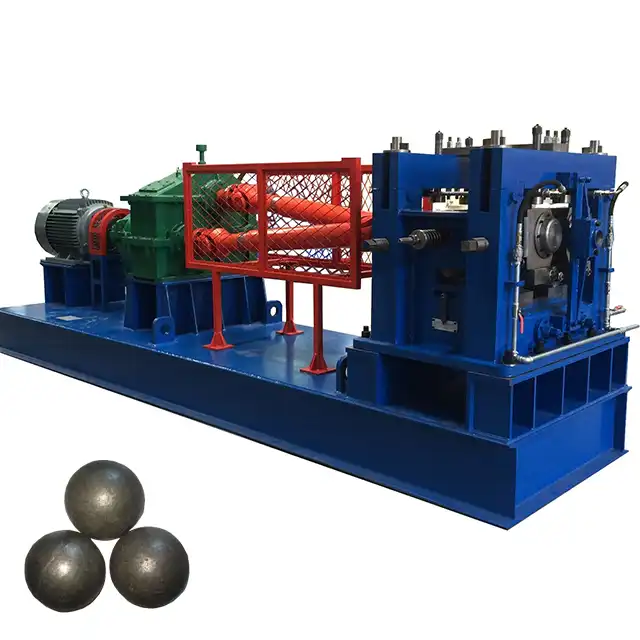

High Speed Steel Ball Making Machine

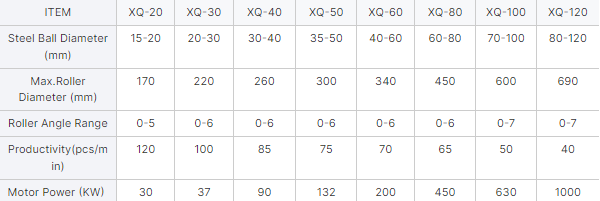

ZQ series Hot steel ball making machine for rolling steel ballscan make steel balls diameter between 20 mm to 120 mm, and steel ball material can be medium carbon steel, alloy steel, copper etc, which is widely used in mining industry, steel plant, power plant, cement plant, chemical plant etc
ZQ series Hot steel ball making machine for rolling steel ballscan make steel balls diameter between 20 mm to 120 mm, and steel ball material can be medium carbon steel, alloy steel, copper etc, which is widely used in mining industry, steel plant, power plant, cement plant, chemical plant etc

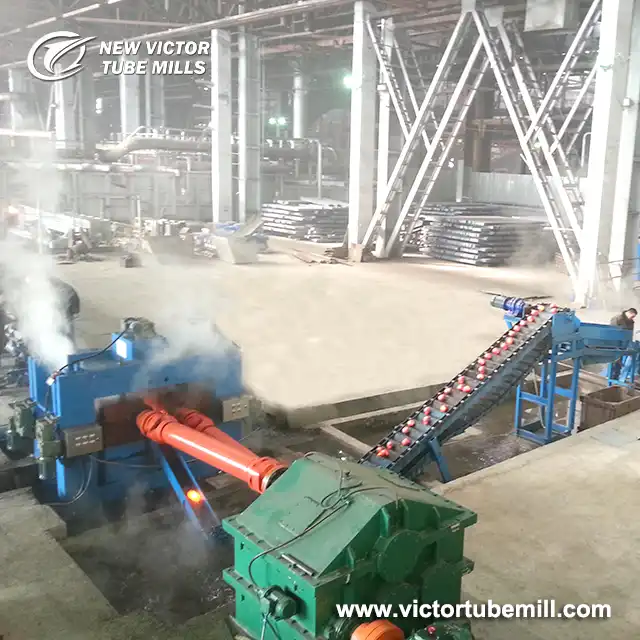

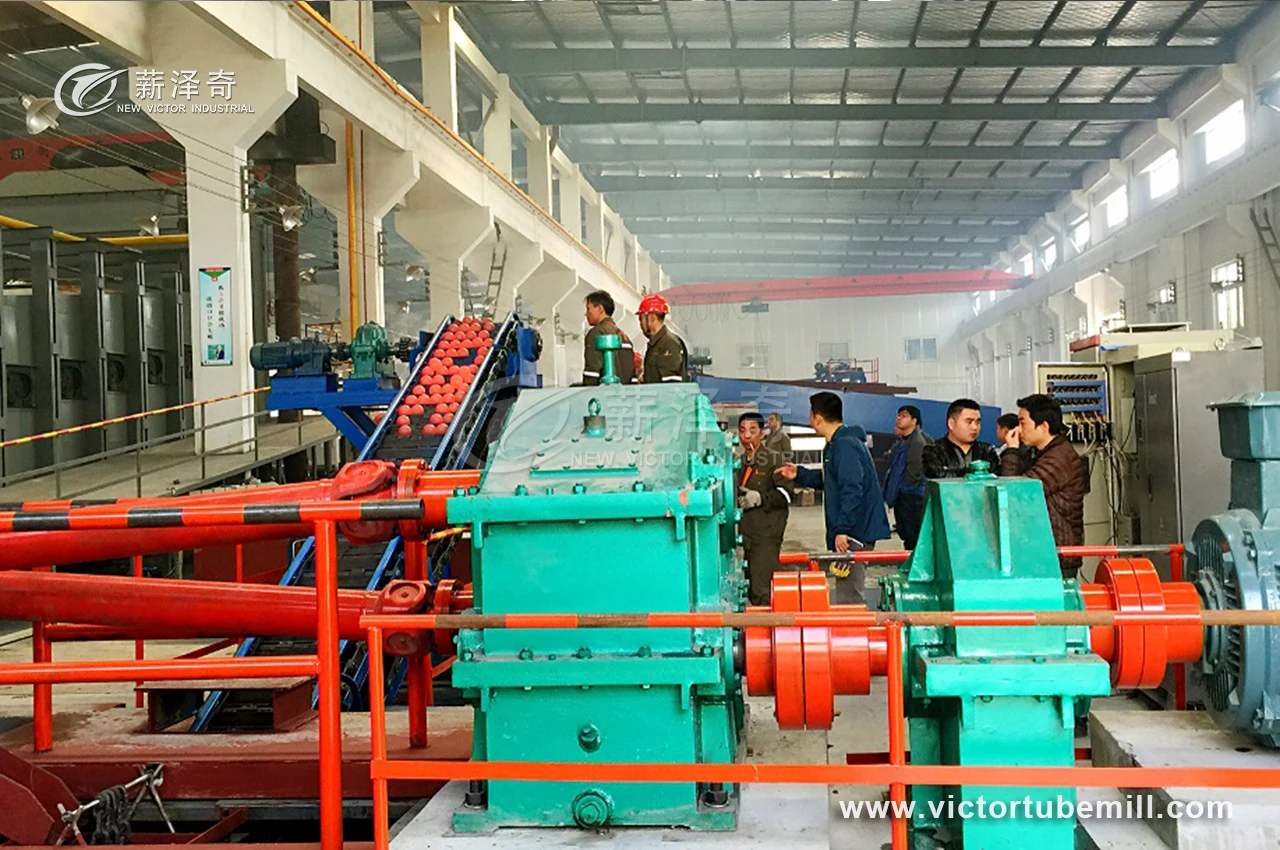

Hot-rolled steel ball making machine

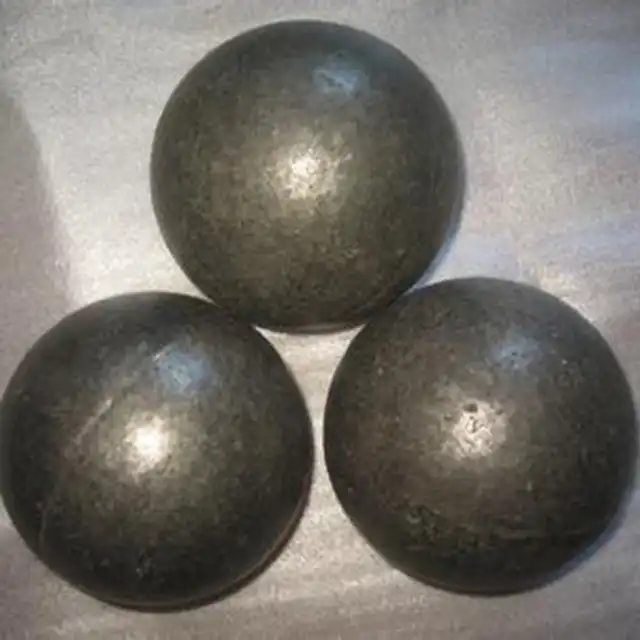

1. Hot-rolled steel ball has all the advantages of steel, after heat treatment to become high-quality ball milling ball.
2. High production efficiency, large output, rolling ball production mechanization, the high degree of automation, no manual operation of the production process, Fewer people, less interference by human factors.
3. Stable quality, high hardness, good hardenability, microstructure densification, fine grain size, not deformation, not all steel ball Deformation and no round, good wear resistance, impact toughness of up to 12 - 35J/cm2, the crushing rate is less than 1%;
4. Low energy consumption, no pollution, low labour intensity, low production costs
5. Forming good, geometric tolerances, quality stability.
6. Low wear rate, long service life, is 2~5 times of the existing cast iron ball, forged steel ball, and the price is quite.
7. Steel ball hardness up to 60~67HRC, internal and external hardness balance, hardness difference <5HRC.
8. Impact toughness of up to 12~35J/cm3.
9. A large proportion of 7.8~7.85J/cm3.
The process of rolling ball is as follows
1. Raw materials
The raw material of rolling ball is all kinds of round bar bars. The steel bars need not be processed and can be directly hoisted onto the feeder through the overhead crane.
2. Heating
The feeding machine sends round bar to the medium frequency heating furnace and is heated until the suitable rolling temperature is reached

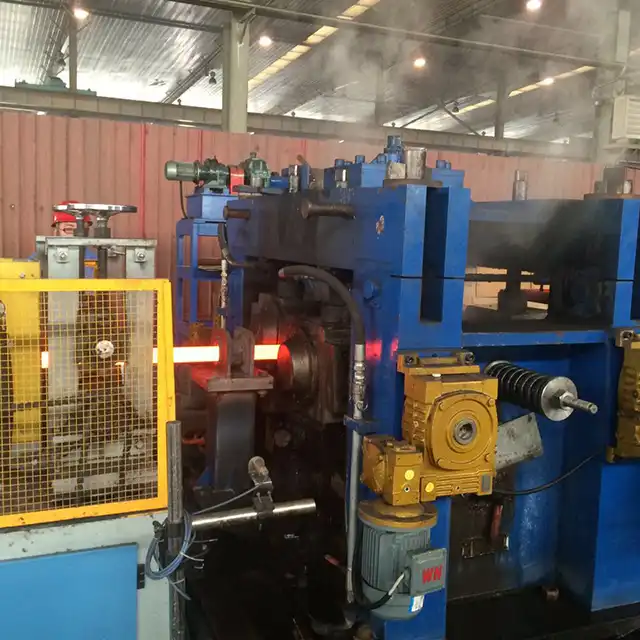

3. Rolling
Heated to the right steel bar is sent to the mill, rolled into balls
4. Heat treatment
When the steel ball is rolled, a specific heat treatment is needed to achieve the required hardness
5. Detection
After heat treatment, the steel ball needs to be tested to see whether the loss has reached the required hardness and whether it still needs special treatment
6. Packing
There are two kinds of stainless steel packaging, iron: usually 850KGS steel, tons of bags: each bag containing a ton.
7. Warehousing
After completion of the packing, the ball will usually be placed in the designated area and ready for delivery.
Characteristics
|
Pipe Material
|
iron |
|
Applicable Industries
|
steel ball making machine |
|
Showroom Location
|
Egypt, Turkey, United States |
|
Marketing Type
|
New Product 2020 |
|
Warranty of core components
|
1 Year |
|
Core Components
|
PLC, Motor |
|
Place of Origin
|
Jiangsu, China |
|
Weight
|
10000 KG |
|
Warranty
|
1 Year |
|
Condition
|
New |
|
Voltage
|
380V 50Hz |
|
Model
|
Steel ball rolling mill machine |
|
Supply Ability
|
100 Set/Sets per Year |
