Characteristics
Place of Origin
—
CHINA
Power
—
60m/min
Weight
—
25 T
Thickness
—
0.3-3.0mm
Model
—
Steel Coil Cut To Length Machine

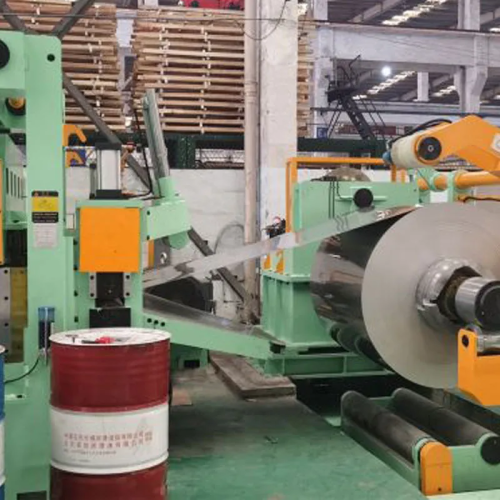

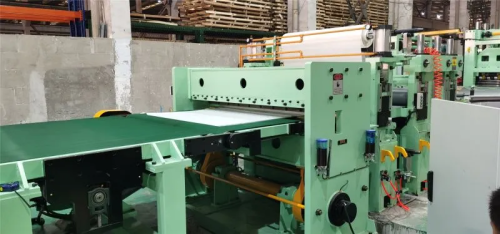

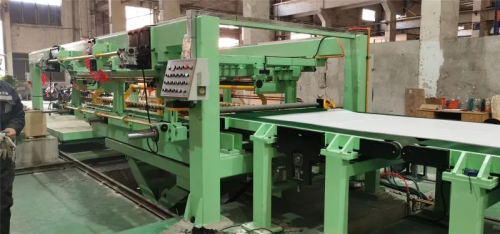

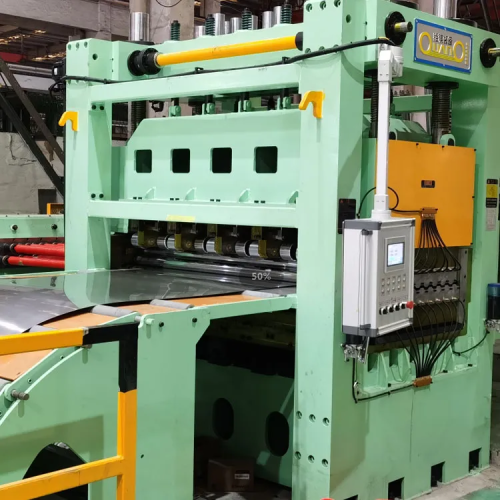

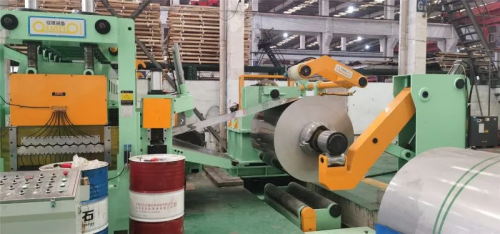

Steel Coil Cut To Length Machine
Full Auto Steel Coil Cut To Length Machine show
Raw material data
Raw material: SS, CR, PPGI
Coil wide: 200-1500mm
Coil weight: 25 T
Coil thickness: 0.3-3.0mm
Leveler type: 6 HI 19 roller
Line speed: 60m/min
Sheet length: 500-4000mm
PVC coater: both side
Paper coator: upper side
Cut to length machine layout drawing
Full Auto Steel Coil Cut To Length Line layout
Full Auto Steel Coil Cut To Length Line composition
1. Coil saddle
2. Paper winder
3. Decoiler with snubber
4. Pinch roller, 6 hi leveler
5. loop bridge
6. Guider, NC feeder(PVC)
7. Servo shear
8. output roller table
9. Coil exit car
10. hydr system
11. electric system
Raw material data
Raw material: SS, CR, PPGI
Coil wide: 200-1500mm
Coil weight: 25 T
Coil thickness: 0.3-3.0mm
Leveler type: 6 HI 19 roller
Line speed: 60m/min
Sheet length: 500-4000mm
PVC coater: both side
Paper coator: upper side
Cut to length machine layout drawing
Full Auto Steel Coil Cut To Length Line layout
Full Auto Steel Coil Cut To Length Line composition
1. Coil saddle
2. Paper winder
3. Decoiler with snubber
4. Pinch roller, 6 hi leveler
5. loop bridge
6. Guider, NC feeder(PVC)
7. Servo shear
8. output roller table
9. Coil exit car
10. hydr system
11. electric system
