Characteristics
Pipe Material
—
Glazed Steel
Applicable Industries
—
Floor
Production Capacity
—
600
Place of Origin
—
Fujian, China
Power
—
18.5kw
Weight
—
16T

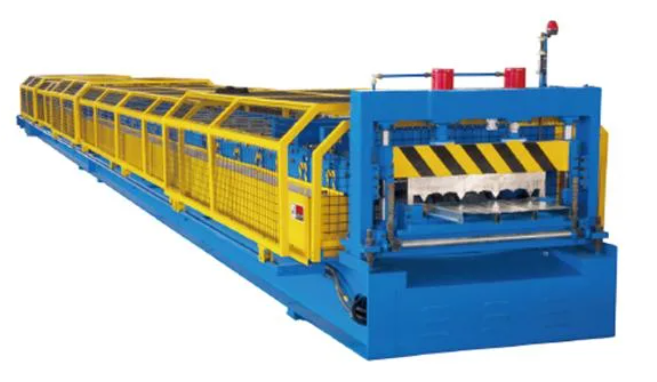

Floor decking machines

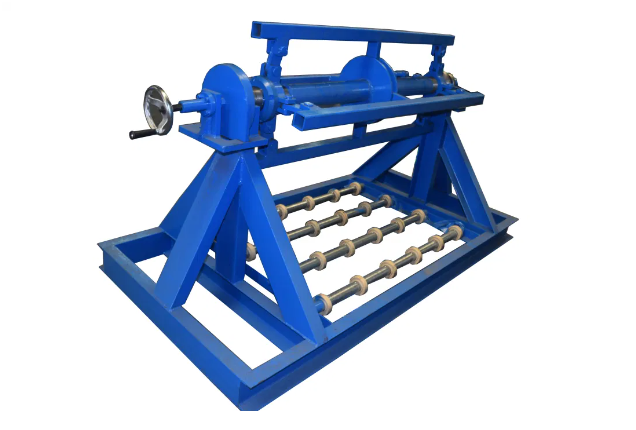

Part a. Un-coil Rack
5Ton*1250mm
No power. Coil inner-diameter = 508mm
Load capacity = MAX.5.0 Ton, Coiler Width= 1000-1200mm
Part b.Entry Roller Un-powered

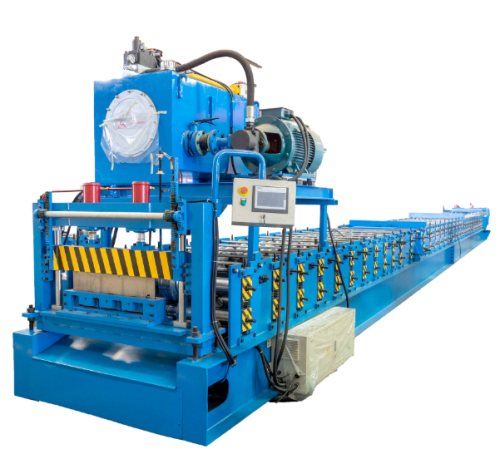

Part c. Roll Forming M/C
Gear/Sprocket driving, 29-step to form
Rollers manufactured from 45# steel, CNC lathes, heat treatment, hard Chrome Coated
Diameter of shaft = ф95mm; Precision Machined
Main motor =18.5 KW x 2, Frequency speed control
Forming speed:Approx. 15m/min

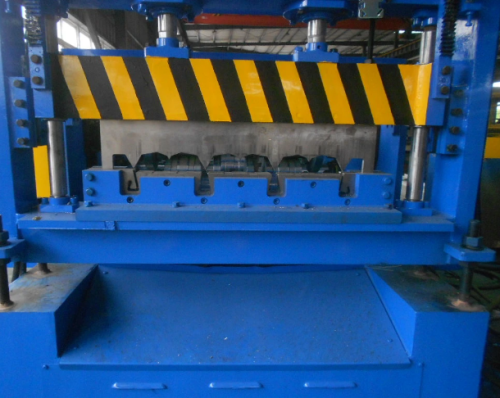

Part d.Hydraulic Cutting Device
Stop to cut, Post cut, Slug Breaker
Pump motor = 7.5KW,
Cutting tool material: Cr12, Heat treatment

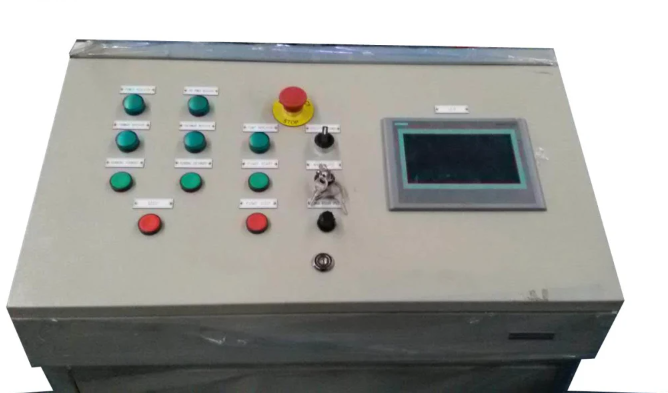

Part e.PLC Control System
Combined with: PLC, Touch Screen (SIEMENS), Inverter (Schneider), Encoder (Omron), etc
Cut-to-length tolerance ≤±2 mm
Control voltage 24V
Part f.Product Rackn Un-powered, 3 units
5Ton*1250mm
No power. Coil inner-diameter = 508mm
Load capacity = MAX.5.0 Ton, Coiler Width= 1000-1200mm
Part b.Entry Roller Un-powered
Part c. Roll Forming M/C
Gear/Sprocket driving, 29-step to form
Rollers manufactured from 45# steel, CNC lathes, heat treatment, hard Chrome Coated
Diameter of shaft = ф95mm; Precision Machined
Main motor =18.5 KW x 2, Frequency speed control
Forming speed:Approx. 15m/min
Part d.Hydraulic Cutting Device
Stop to cut, Post cut, Slug Breaker
Pump motor = 7.5KW,
Cutting tool material: Cr12, Heat treatment
Part e.PLC Control System
Combined with: PLC, Touch Screen (SIEMENS), Inverter (Schneider), Encoder (Omron), etc
Cut-to-length tolerance ≤±2 mm
Control voltage 24V
Part f.Product Rackn Un-powered, 3 units
Characteristics
|
Pipe Material
|
Glazed Steel |
|
Applicable Industries
|
Floor |
|
Production Capacity
|
600 |
|
Place of Origin
|
Fujian, China |
|
Power
|
18.5kw |
|
Weight
|
16T |
|
Condition
|
New |
|
Voltage
|
380V/50HZ |
|
Thickness
|
0.8-1.2mm |
|
Model
|

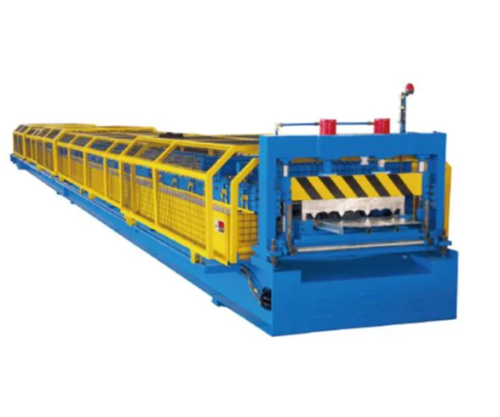

Floor decking machines |
